Designed and manufactured in New Zealand, Ethos Woodfires represent the evolution of the wood fire as a clean and efficient heating solution.
Draft Free Operation
How one fire can be warmer than another
Ethos woodfires are unique in that they don’t draw their combustion air from the room being heated, or even from elsewhere in the dwelling.Instead the EconAir Induction flue system is bi-directional, and draws all its combustion air from outside via the flue outer layer.The patented Ethos system has numerous advantages:
Eliminates cold drafts in the home
No need to vent the room in modern airtight design buildings
Incoming air is pre-heated by the exhaust gases to over 300°C creating greater combustion, higher efficiency and reduced emissions
No backpressure and quieter operation in windy areas
The fire burns brightly, for greater ambience

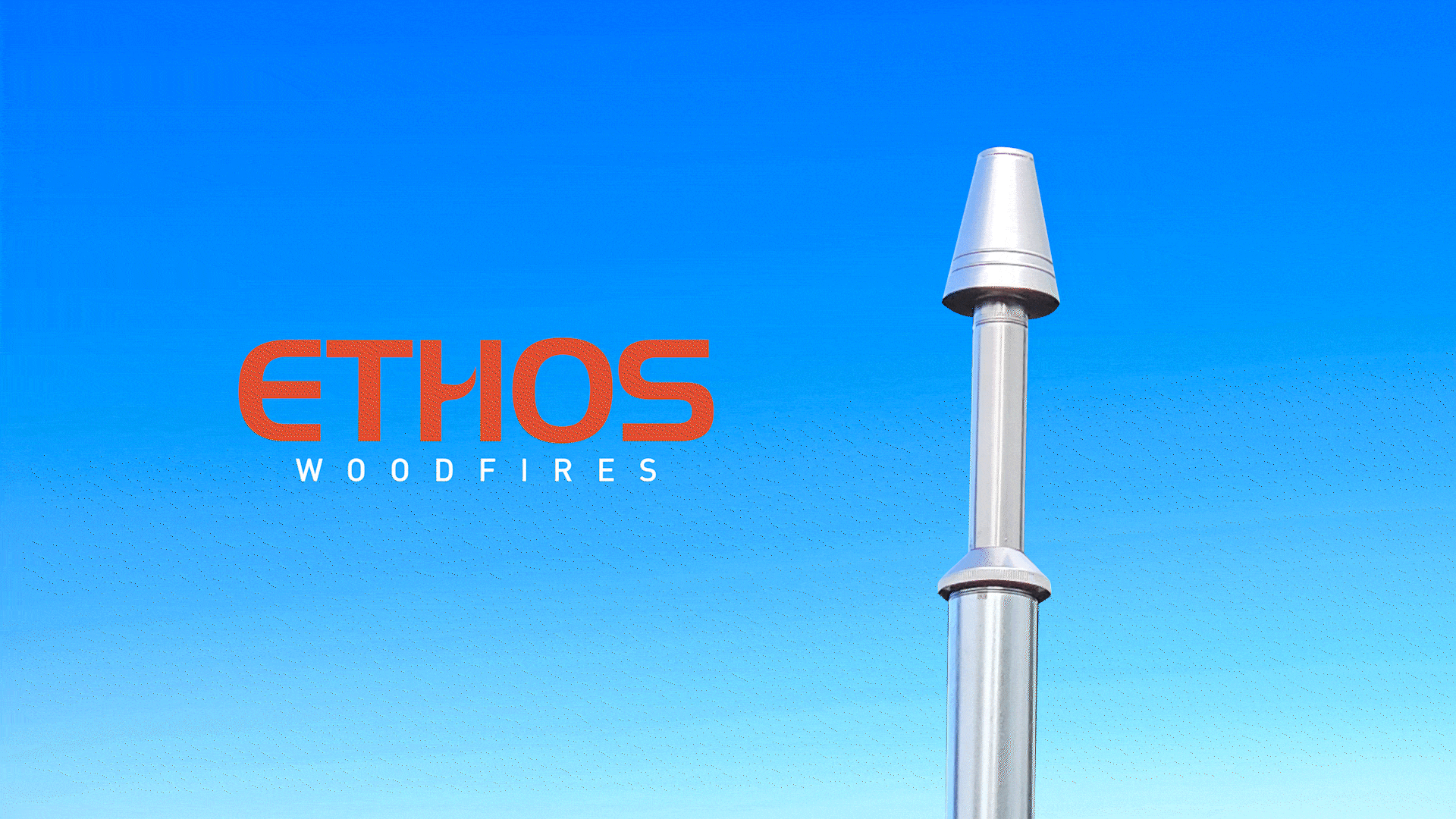

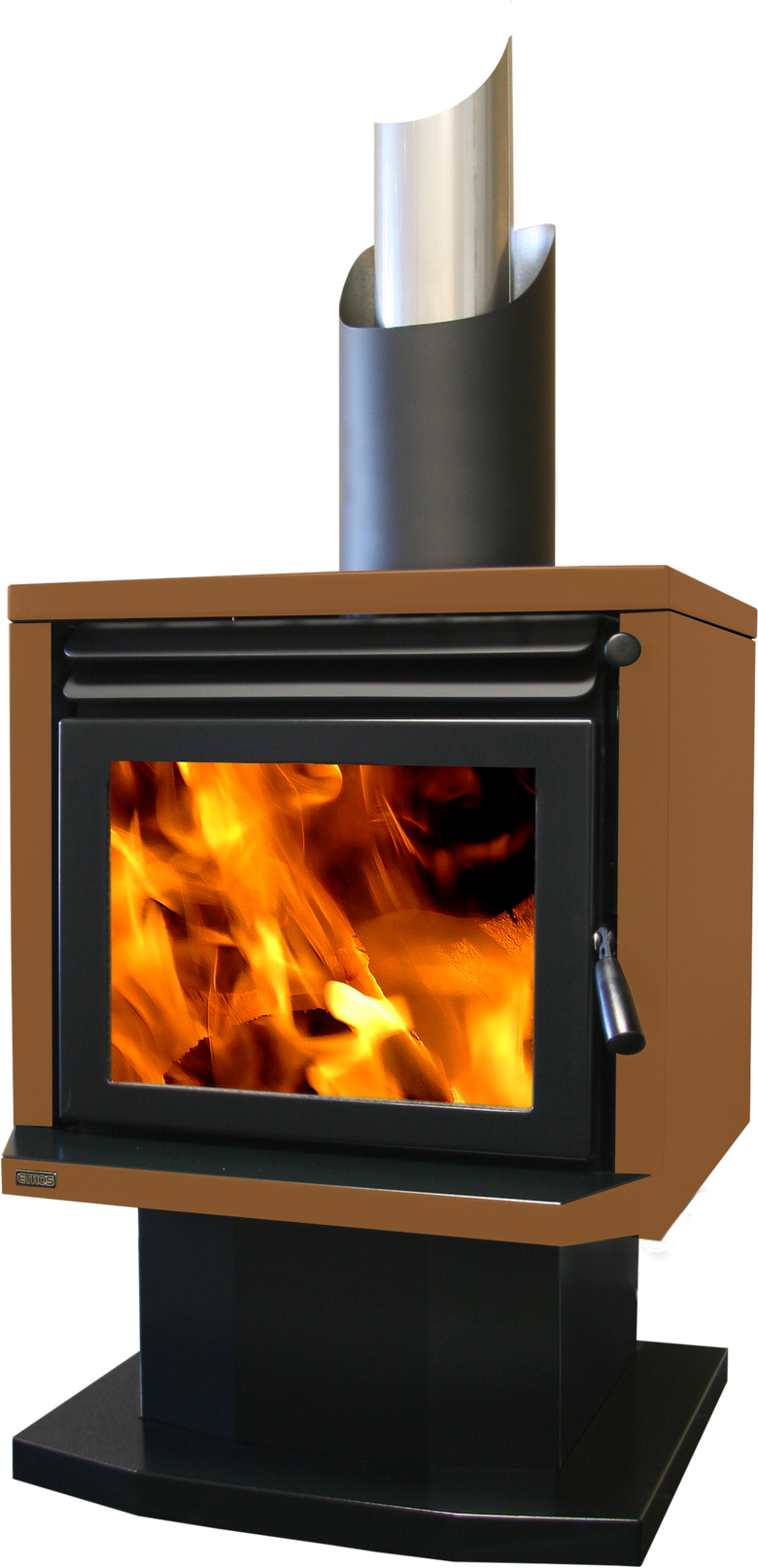

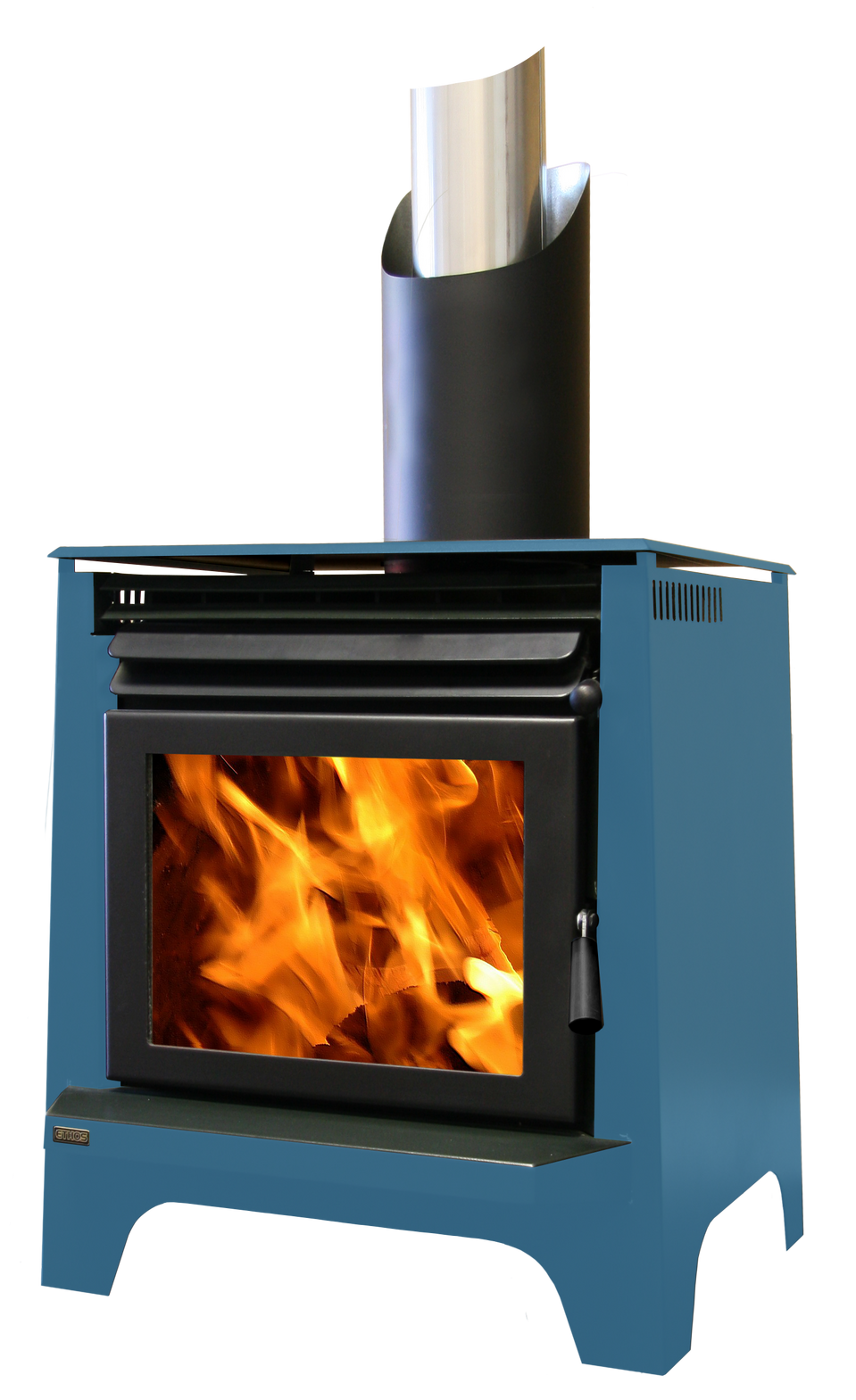

How Ethos Econair Flue System Works
Combustion air is drawn from outside the home, down the outer section of the flue system.The incoming air is pre-heated by the hot exhaust gases travelling up the centre of the flue system to over 300°C before entering the firebox.Using combustion air from outside keeps your warm air inside the home and eliminates the uncomfortable drafts often caused by conventional flue logburners.The EconAir bi-directional flue system will not interfere with other ventilation devices in your home, like extractor fans, range hoods, and home ventilation systems, reducing smoke blow back into the room, and wind noise.
perfect for modern airtight building designs

Big things come in small packages
The combination of highly pre-heated combustion air and the specially designed Ethos firebox with four independent burn areas acts like a supercharger for burning wood.Nearly everything burns, from the solids and volatiles to the smoke itself. This is key to why our fires are so efficient at generating heat, and why their emissions are so low.
We regularly receive feedback from new owners amazed that they are getting so much heat from so few trips to the wood stack.Other fires billow smoke from their chimneys, but with an efficient Ethos your neighbours will be hard-pressed to tell your fire is going.Better for your fuel costs, better for the environment, and far less residual ash to clean in the morning.The fire also burns brightly, so you are rewarded with a more entertaining visual experience while you enjoy the heat.
What's not to love?
Low Emission & High Efficiency
Affordable, Environmentally Friendly, Lower Emission Heat
Average Efficiency | 72%
Peak Output | 18kW
Low Emissions | 0.56 g/kg
That's our promise.
Burning correctly seasoned wood from sustainable resources, Ethos woodfires give an environmentally friendly and cost effective way to heat your space.Lower emissions ratings means Ethos woodfires are well below the strictest emission standards across both Australia and New Zealand.
Burning wood is considered carbon-neutral because it does not increase the amount of carbon dioxide cycling through the atmosphere.Carbon is continually cycling through all living plants and animals. Growing trees convert carbon dioxide to woody biomass, so carbons released from burning wood are actually processed naturally by growing trees and turned into more wood. It’s all part of a tree’s natural growth cycle.

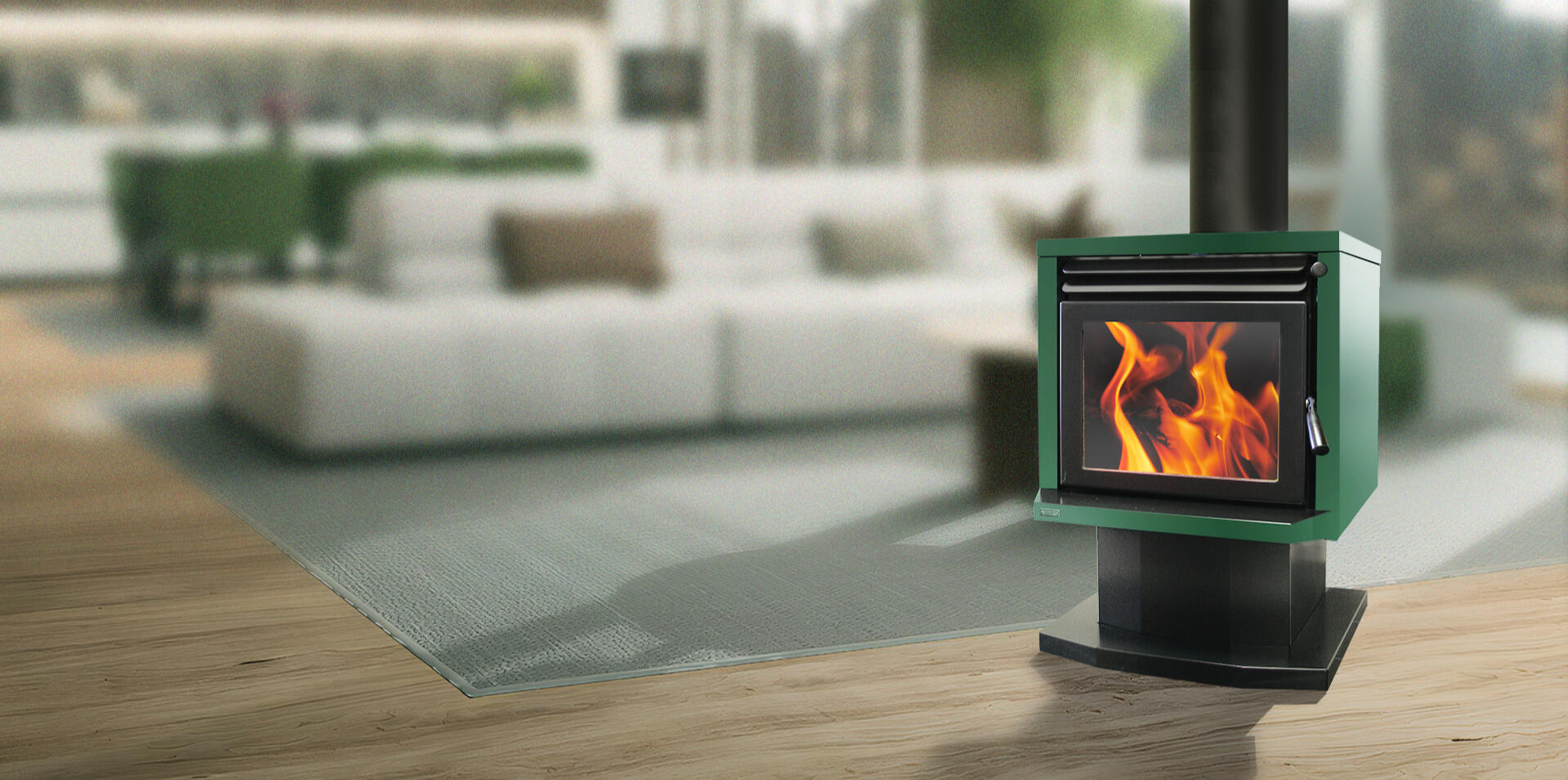

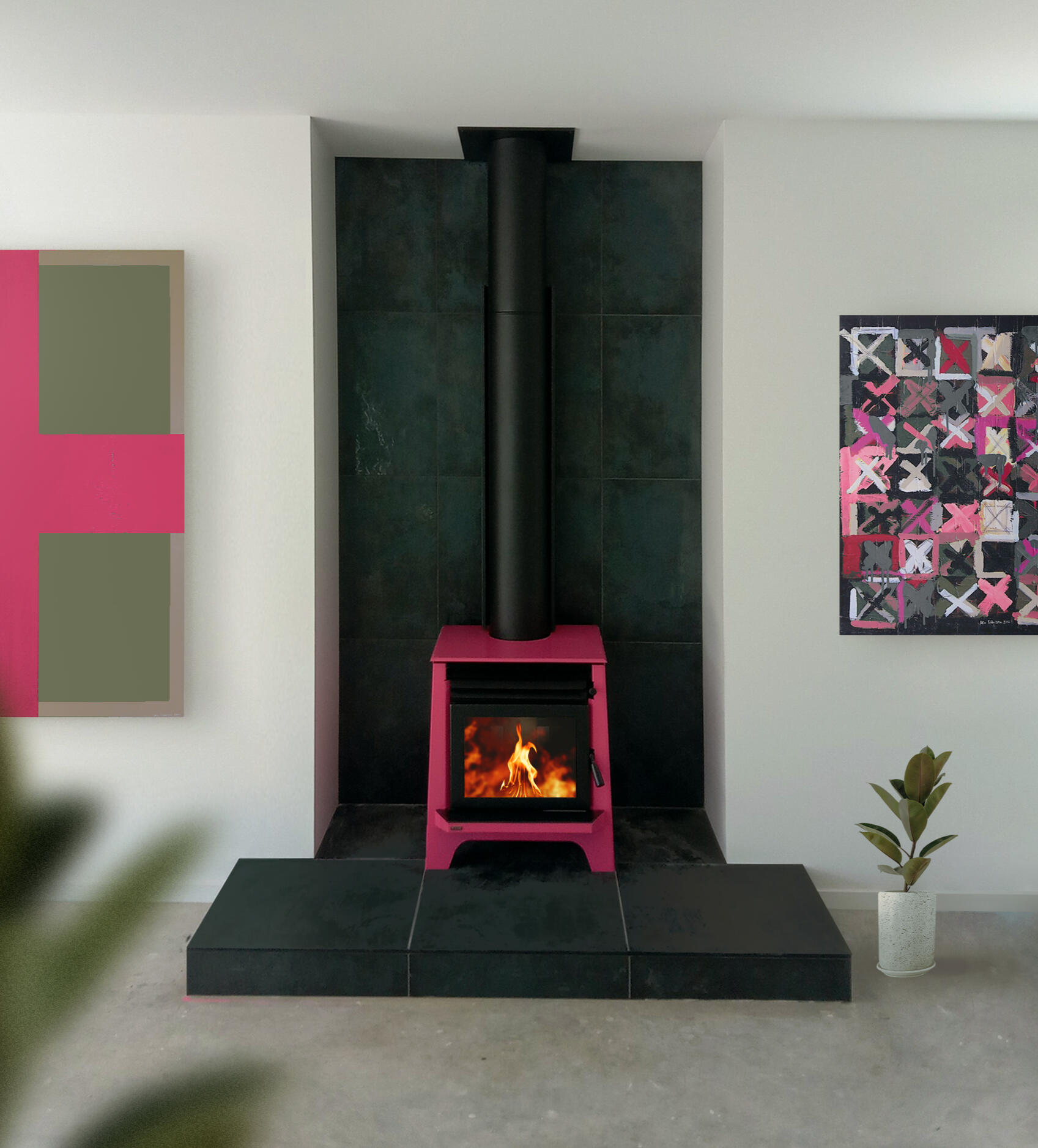

Bespoke Colour Options
Who ever said
'Woodfires have to be black.'

Order your Ethos fire in a customised colour to suit your room decor at no extra cost.Choose from over 100 custom colours from Alphatec, Duralloy and Electro colour palettes to give you a truely customised look. Make it compliment your room, or make a statement with your fire, the choice is yours.
Designed to fit your decor
Classic black remains available for those who prefer a traditional aesthetic.Should you wish to update your colour scheme later, no problem. Simply recolour your existing panels or order a replacement set.
Freestanding woodfires
Freestanding woodfires provide zone heating, allowing you to heat specific areas of your home efficiently. Ideal for both new constructions and retrofitting existing spaces.

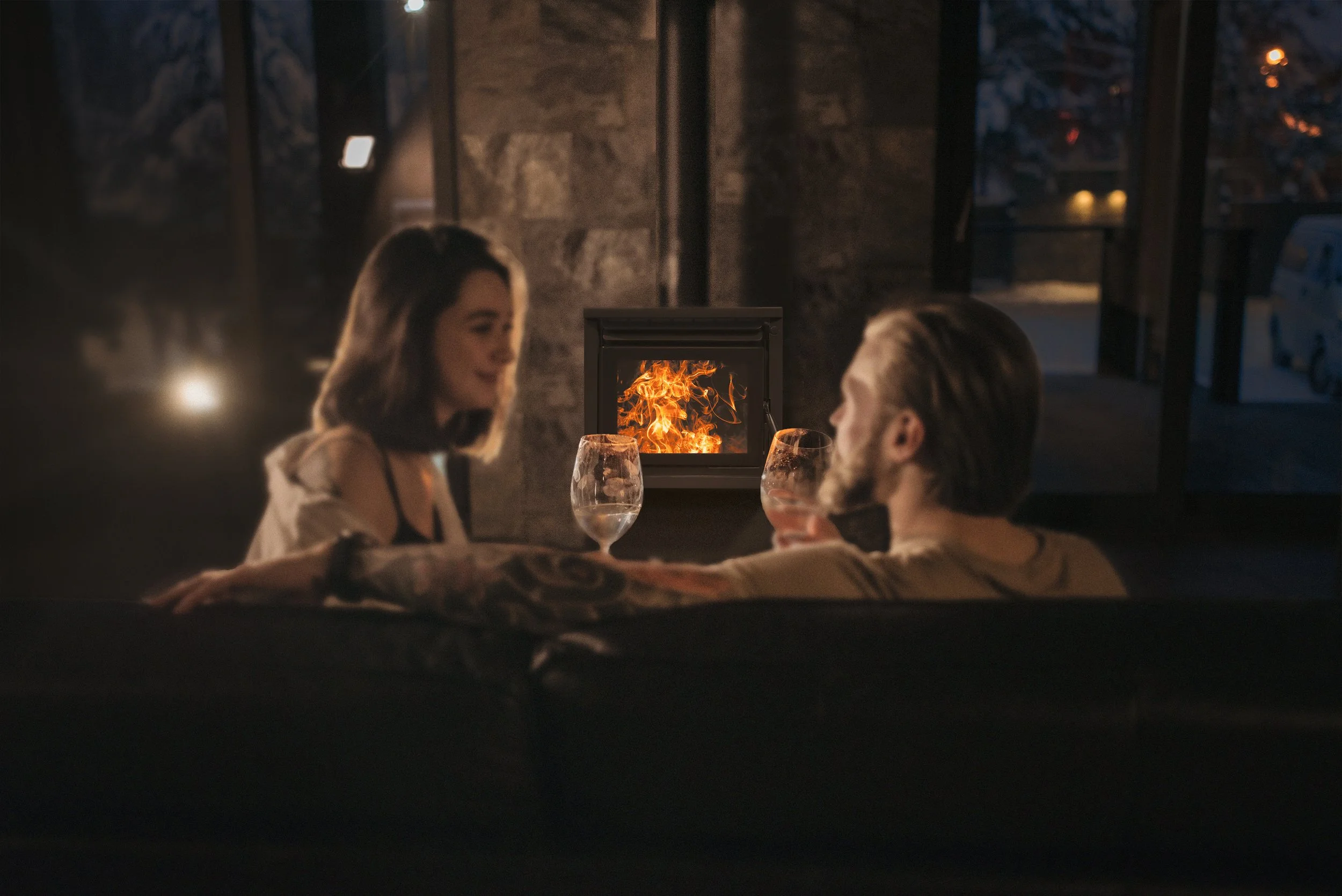

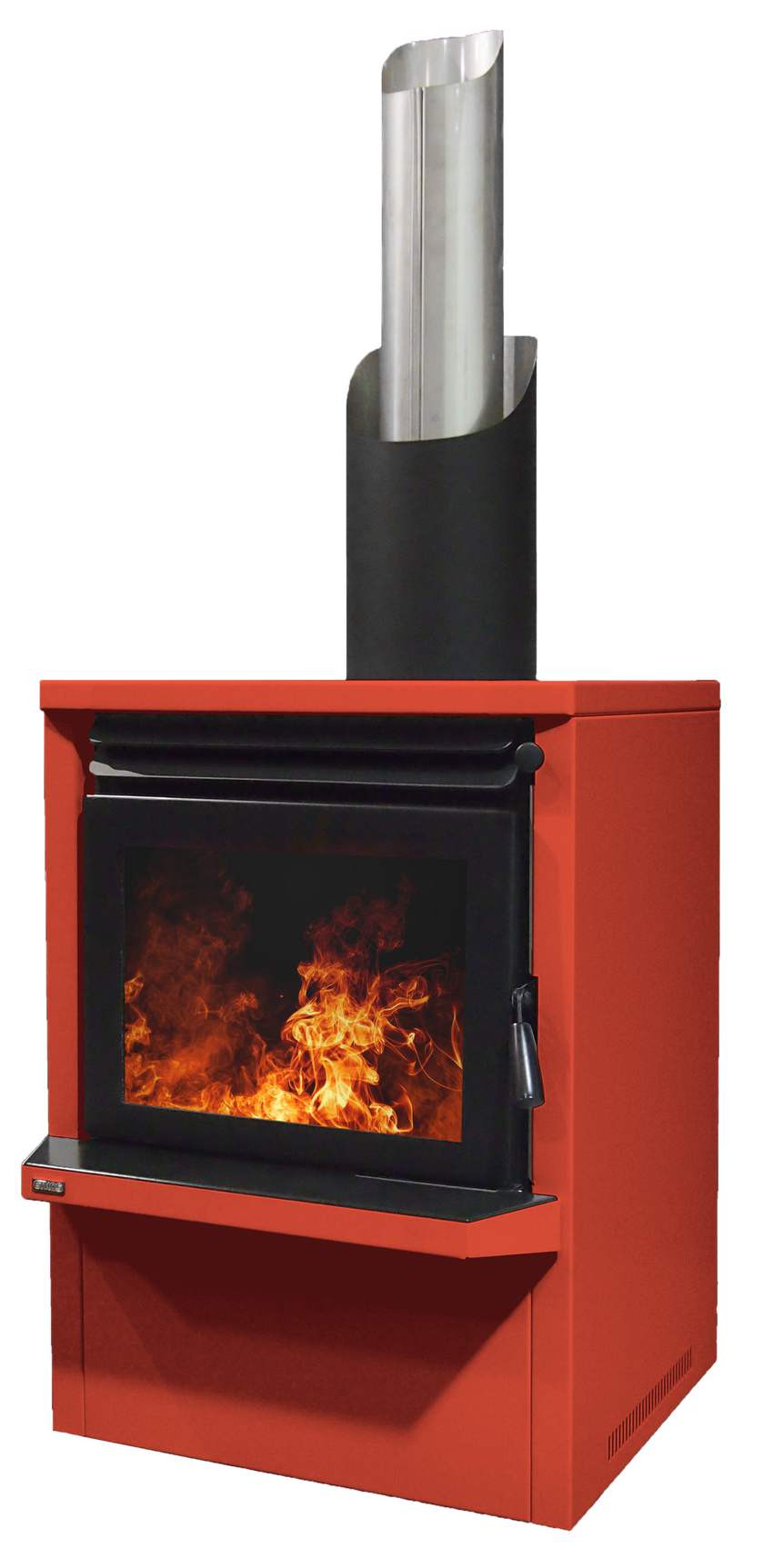

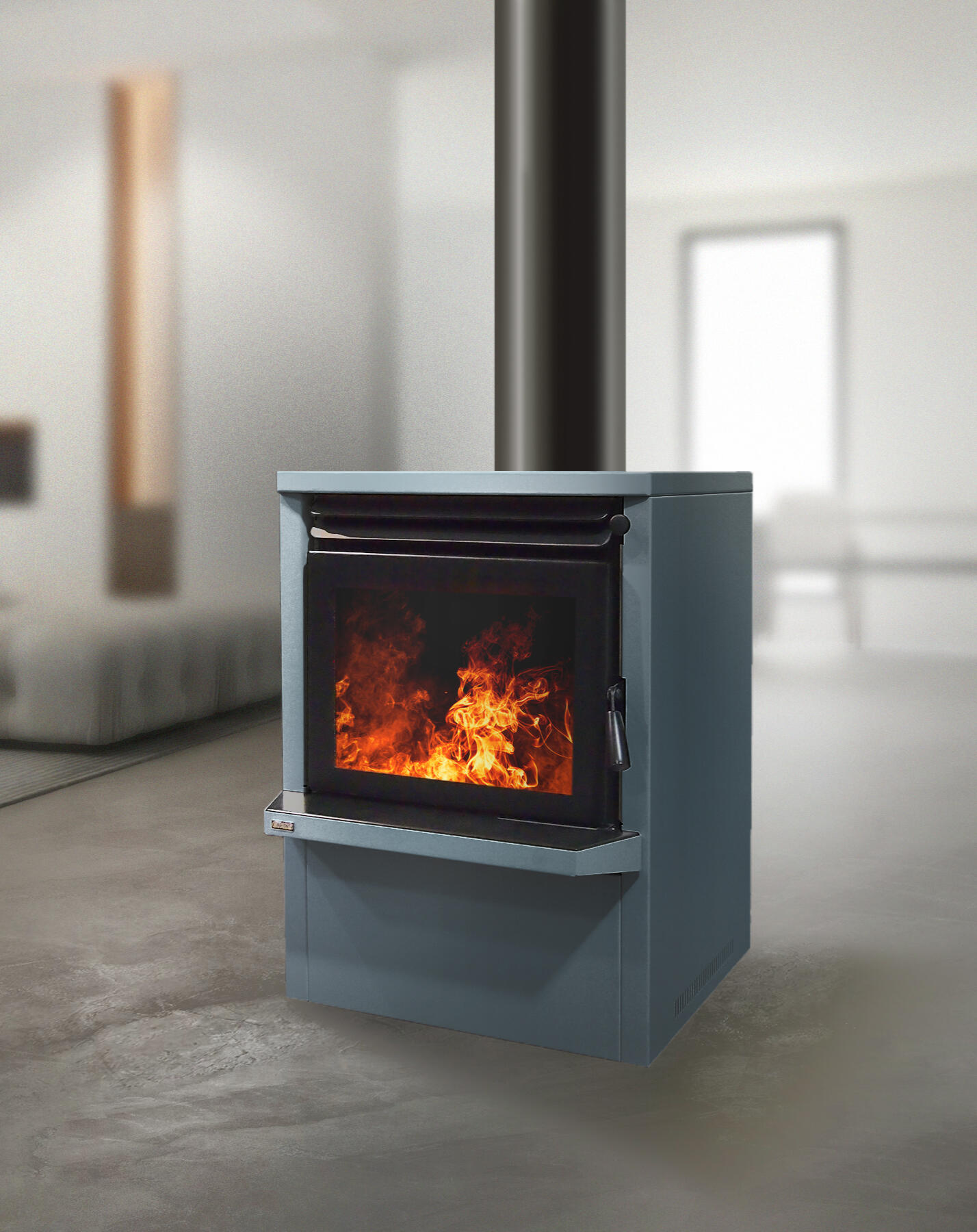

Galaxy
Ultra clean lines in a floorstanding configuration. Make a modern statement in your living space with galaxy.
$4,999
Galaxy Fire
$1,099
4.2m Flue Kit
Additional flue liners and hardware may be required for some installations.
Please confirm with your Ethos dealer for total cost.
Galaxy represents a modern design direction.
Moving to an ultra clean cubic floorstanding outer shell the Galaxy becomes a perfect canvas to apply your colour touch to embrace and enhance your decor, all the while delivering the high performance and reduced emissions that Ethos wood fires have become renowned for.
With over 100 colour options, you can decide whether to make your Galaxy a bold statement or a subtle feature. With so many options to choose from, any environment will welcome the Galaxy.While all Ethos fires are designed to give a combination of both radiant and convection forms of heating, Galaxy has been designed to be slightly more radiant in operation, and will reward with a more traditional wood fire glow and operates well in rooms with high ceilings.Complimenting this, the convective properties will allow the heat to spread evenly throughout your home. The Galaxy gives you the best of both radiant and convective heating styles in an interior design friendly package.A removable top grill means you can cook directly on your Galaxy firebox for a true wood stove experience, and the large viewing window gives a bright and entertaining fire.

Performance
| Estimated Peak Output | 18kW |
| Average Efficiency | 72% |
| Average Emissions | 0.56 grams per kilogram |
| Emissions per Output | 39 milligrams per megajoule |
Dimensions
| Flue Diameter | Fire Height | Fire Width | Fire Depth |
|---|---|---|---|
| 130mm / 200mm | 740mm | 540mm | 485mm |
Approvals
NZ MFE/ECAN approval number: 192390Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads
Genesis
Fresh contemporary styling with clean design elements, Genesis is at home in both modern and classical rooms.
$4,999
Genesis Fire
$1,099
4.2m Flue Kit
Additional flue liners and hardware may be required for some installations.
Please confirm with your Ethos dealer for total cost.
Where it all began for Ethos.
With the classic pedestal design and all the intelligent features of the Ethos wood fire range, the Genesis is one of the most versatile and effective wood fires on the market.The contemporary styling and clean design elements makes the Genesis at home in both modern and classical rooms.With over 100 colour options, you can decide whether to make your Genesis a bold statement or a subtle feature. With so many options to choose from, any environment will welcome the Genesis.
While all Ethos fires are designed to give a combination of both radiant and convection forms of heating, Genesis has been designed to be slightly more radiant, and will reward with a more traditional wood fire glow and will operate well in rooms with high ceilings.Complimenting this, the convective properties will allow the heat to spread evenly throughout your home. The Genesis gives you the best of both radiant and convective heating styles.A removable top grill means you can cook directly on your Genesis firebox for a true wood stove experience, and the large viewing window gives a bright and entertaining fire.

Performance
| Estimated Peak Output | 18kW |
| Average Efficiency | 72% |
| Average Emissions | 0.56 grams per kilogram |
| Emissions per Output | 39 milligrams per megajoule |
Dimensions
| Flue Diameter | Fire Height | Fire Width | Fire Depth |
|---|---|---|---|
| 130mm / 200mm | 740mm | 540mm | 485mm |
Approvals
NZ MFE/ECAN approval number: 02010Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads

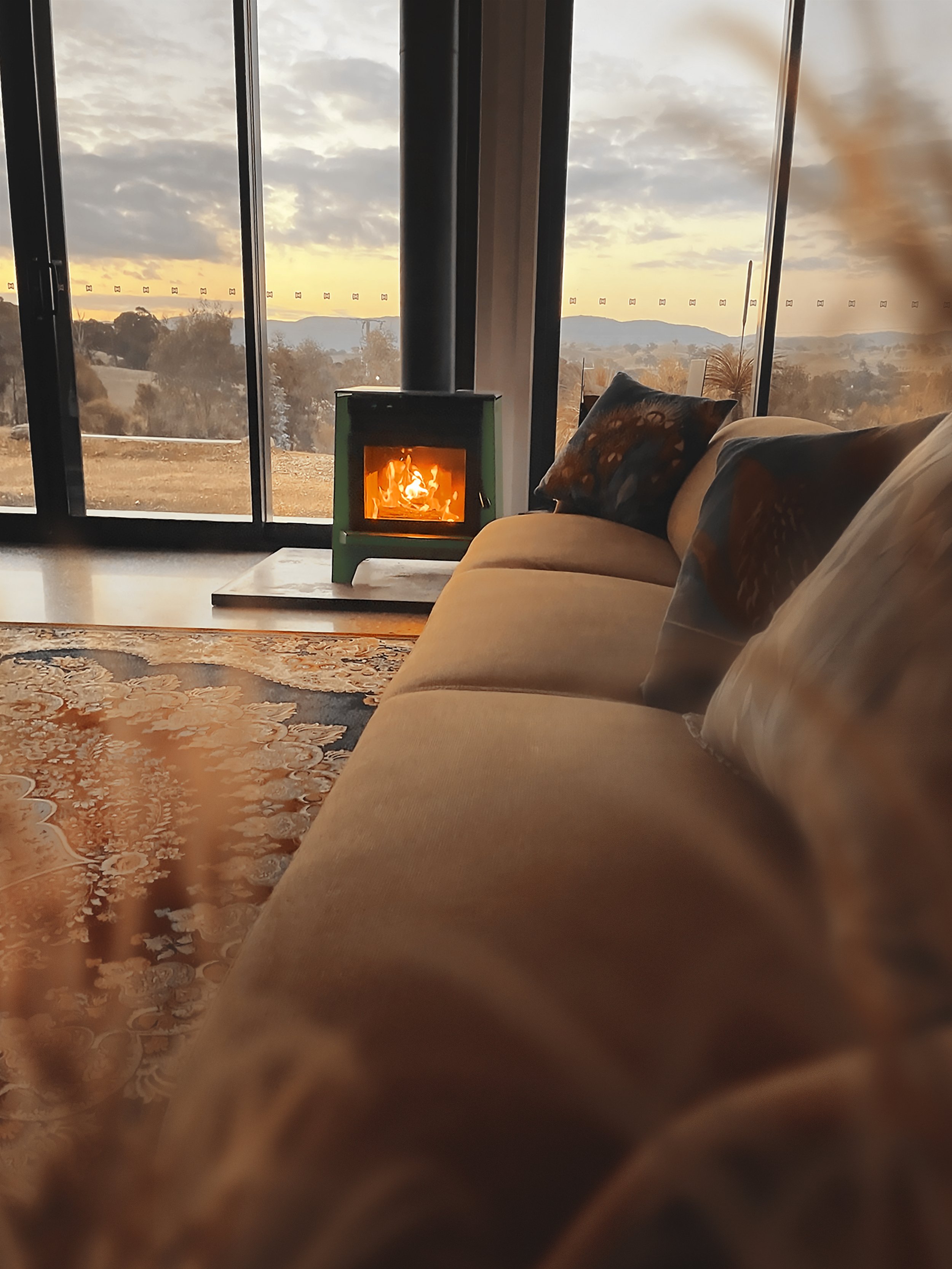

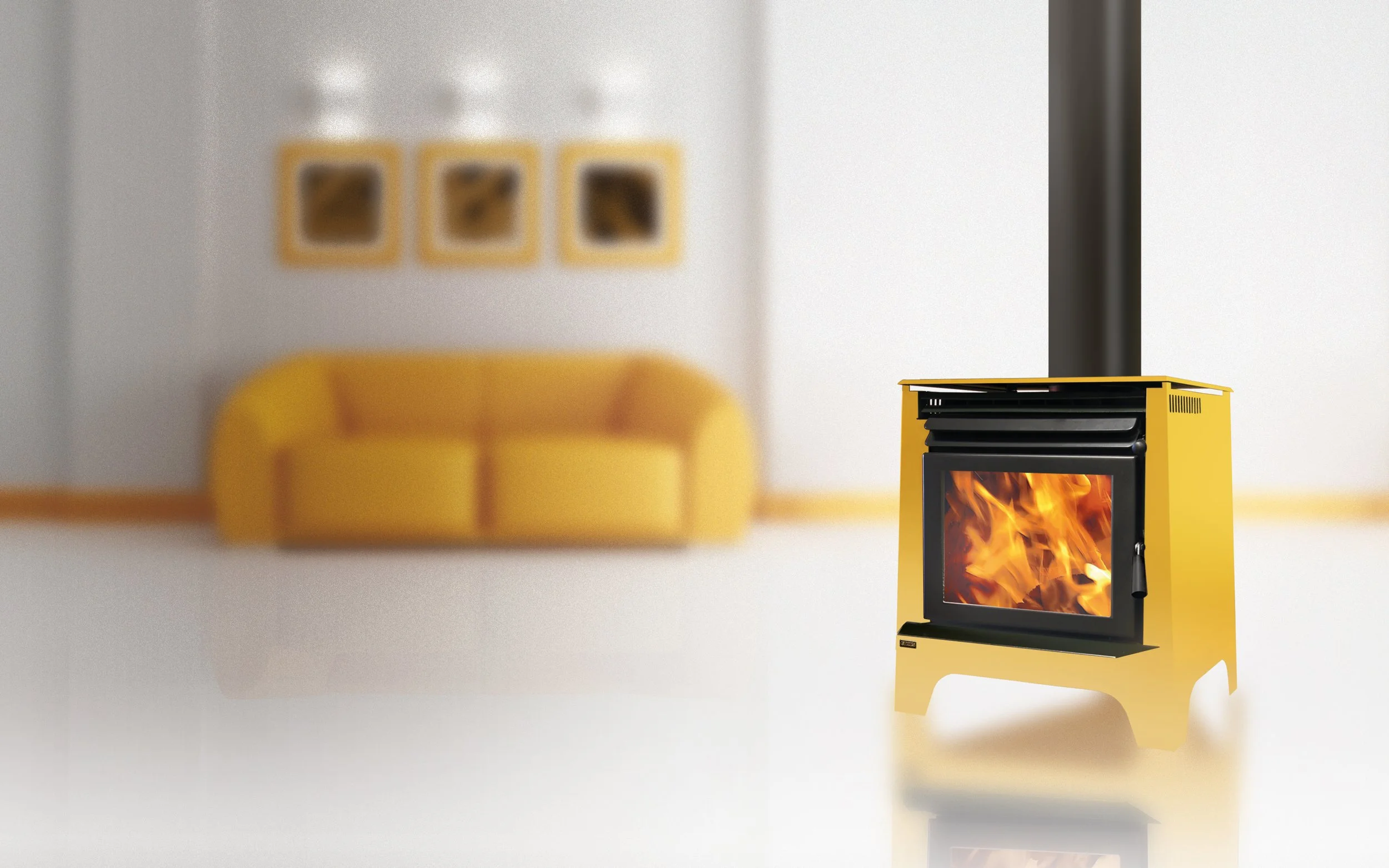

Phoenix
A modern version of the classic stove design, Phoenix offers a fresh cubic concept with sturdy visual cues from its outward tapering legs.
$5,299
Phoenix Fire
$1,099
4.2m Flue Kit
Additional flue liners and hardware may be required for some installations.
Please confirm with your Ethos dealer for total cost.
To heat your whole home, not just your living room, having greater convective properties is a real advantage.
Moving the heated air means it can heat a larger area, and travel down hallways, around corners, and gets to those hard to reach cool areas that radiant heat alone just can’t heat up.
The Phoenix is designed to maximise its convection output by way of its clever inner and outer layer design. Air is drawn up between the firebox and the outer shell, and convected out from the top section into the room. It literally pumps the heat out.A highly convective wood fire is ideal if you are installing a heat transfer kit, to take the heat from your living room and pass it to other rooms in the house. Moving warm air is critical to the way heat transfer kits operate, and allows you to power your home heating solution with ease.Of course those in close range will also enjoy the lovely radiant properties from the Phoenix’s large glass window front, and an entertaining view of the bright burning high efficiency fire.With over 100 colour options the Phoenix brings a touch of class to any room.

Performance
| Estimated Peak Output | 18kW |
| Average Efficiency | 72% |
| Average Emissions | 0.56 grams per kilogram |
| Emissions per Output | 39 milligrams per megajoule |
Dimensions
| Flue Diameter | Fire Height | Fire Width | Fire Depth |
|---|---|---|---|
| 130mm / 200mm | 670mm | 540mm | 485mm |
Approvals
NZ MFE/ECAN approval number: 091862Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads
Aquos
Contemporary Genesis styling with the added convenience of a hot water booster to reduce home electricity consumption.
$5,499
Aquos Fire
$1,099
4.2m Flue Kit
Additional flue liners and hardware may be required for some installations.
Please confirm with your Ethos dealer for total cost.

Performance
| Estimated Peak Output | 18kW |
| Estimated Peak Water Booster | 2kW |
| Average Efficiency | 66% |
| Average Emissions | 0.6 grams per kilogram |
| Emissions per Output | 45 milligrams per megajoule |
Dimensions
| Flue Diameter | Fire Height | Fire Width | Fire Depth |
|---|---|---|---|
| 130mm / 200mm | 740mm | 540mm | 485mm |
Approvals
NZ MFE/ECAN approval number: 091861Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads

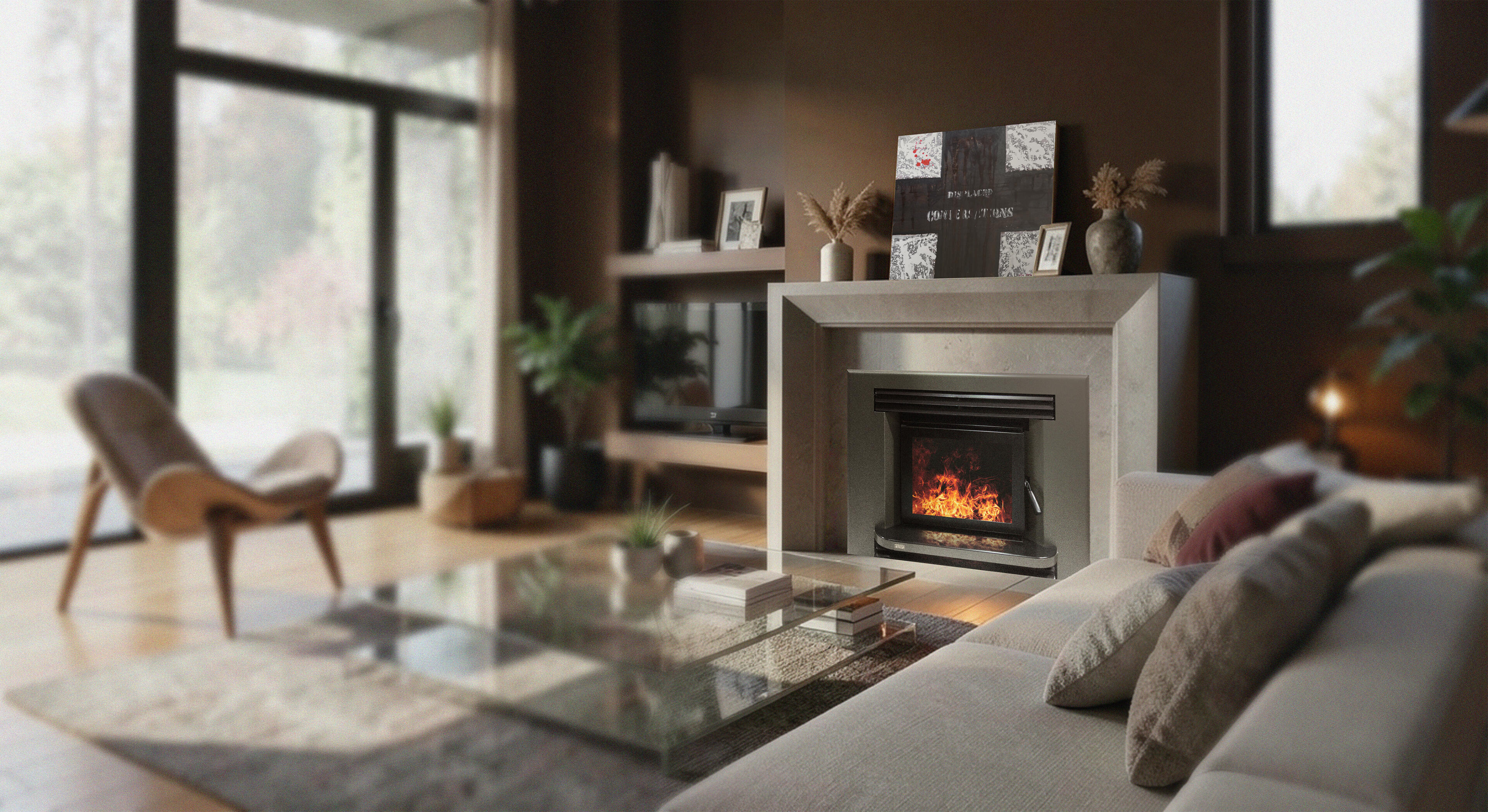

Insert woodfires
Insert woodfires utilize the existing chimney structure, transforming a traditional, inefficient open hearth into a high-efficiency heating source. Ideal for homeowners who want to upgrade their current fireplace without installing a new chimney system.

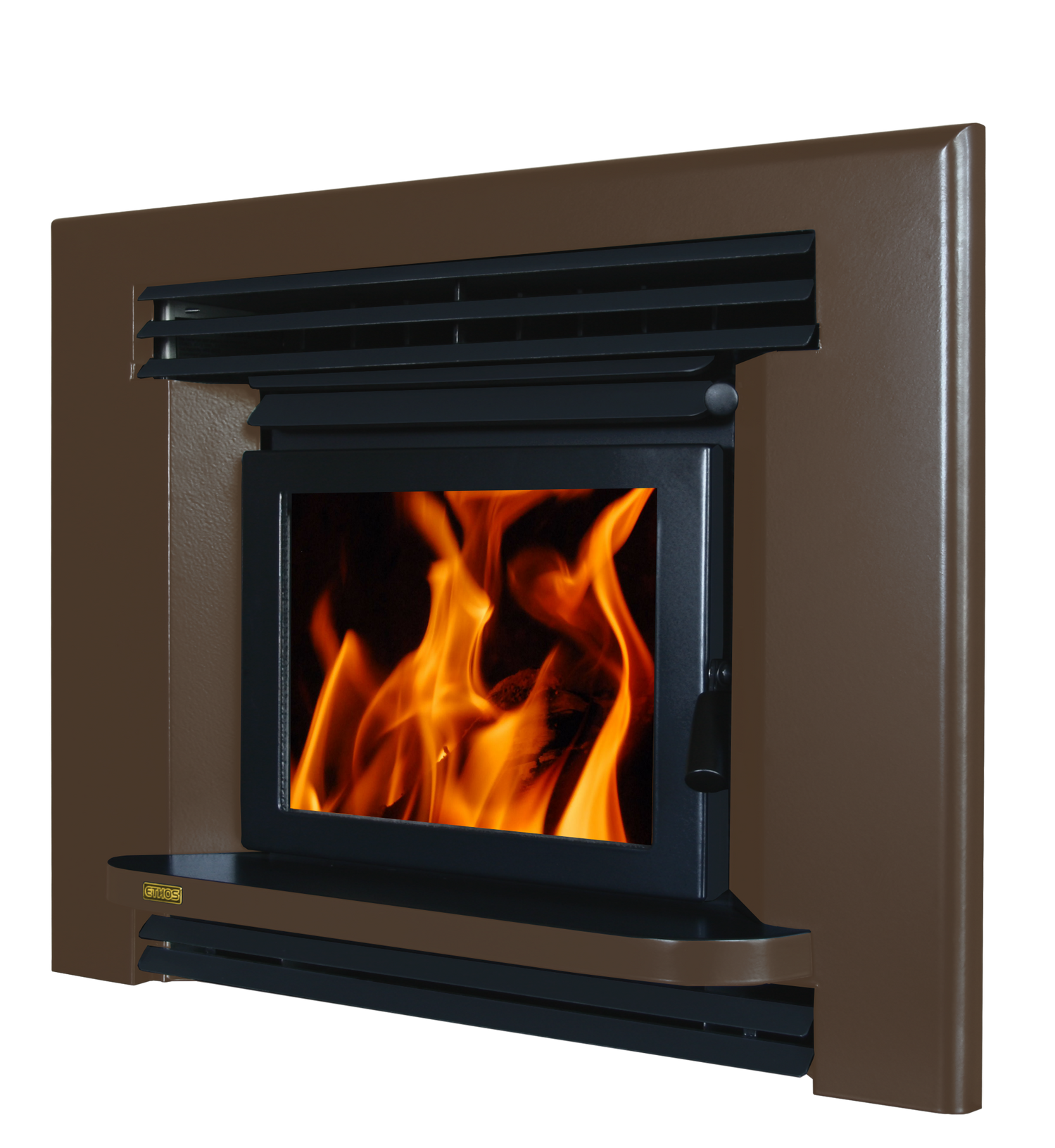

Ares
A super efficient low emission fire can be built in to existing brick surrounds or add the optional Zero-Clearance Kit to build directly into timber framing without masonry
$4,999
Ares Fire
$999
4.2m Flue Kit
Additional flue liners and hardware may be required for some installations. Please confirm with your Ethos dealer for total cost.
Zero Clearance Timber Framing Options
$1,299
Zero Clearance Cabinet
To build into timber framing without masonry.
$1,599
4.2m Zero Clearance Flue Kit
Replaces the standard flue kit in Zero Clearance installations. Additional flue liners and hardware may be required for some installations. Please confirm with your Ethos dealer for total cost.
$999
Zero Clearance Base
Only required for timber floor installs.
Nothing quite beats the clean lines and uncluttered look of an insert fire.
The Ares has all the intelligent combustion features, high output and and low fuel consumption of the freestanding models, with the benefit of discreet wall mounting.Perfect if you have an existing open fire or log burner, the compact firebox design means there will be no trouble fitting into even the smallest open fireplaces, but don’t let the compact firebox size fool you. It can pump out a generous 14kW of heat, making it comparible to much larger rivals.
Add the extremely low emissions and high efficiency, and you’ll realise that you’re generating heat where other fires are just making smoke. Better for the environment, better for your wallet, and better for your home.
Clean, elegant and simple.
If you are building new, or renovating a home without an existing fireplace, just add in the optional Zero Clearance Kit to build your insert fire into timber framing and floors. The Ares gives maximum flexibility with minimum fuss, for the custom look you want.Couple all this with the large entertaining viewing window, and the ability to choose from over 100 custom colours for the front facia and you have everything you need to stylishly heat your room.

Performance
| Estimated Peak Output | 14kW |
| Average Efficiency | 67% |
| Average Emissions | 0.3 grams per kilogram |
| Emissions per Output | 22 milligrams per megajoule |
Dimensions
| Flue Diameter | Fire Height | Fire Width | Fire Depth |
|---|---|---|---|
| 130mm | 600mm | 615mm | 465mm |
| Facia Height | Facia Width |
|---|---|
| 650mm | 850mm |
Approvals
NZ MFE/ECAN approval number: 103880Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads
Ares Frame
Designed specifically for raised installations in timber framing. Now your fire can be a beautiful wall appliance.
$5,299
Ares Frame Fire
$1,299
Zero Clearance Cabinet
To build into timber framing without masonry.
$1,599
4.2m Zero Clearance Flue Kit
Replaces the standard flue kit in Zero Clearance installations. Additional flue liners and hardware may be required for some installations. Please confirm with your Ethos dealer for total cost.
$999
Zero Clearance Base
Only required for timber floor installs.
No flue to look at, just an appliance on the wall surface.
The Ares Frame has all the intelligent combustion features of the standard Ares fire, but has a revised facia designed to be raised above ground level, and installed into timber framed walls with a Zero Clearance Kit.This configuration means you can design your fire to truly be an elegant wall appliance, for a beautiful minimalist design.Add the extremely low emissions and high efficiency, and you’ll realise that you’re generating heat where other fires are just making smoke. Better for the environment, better for your wallet, and better for your home.Couple all this with the large entertaining viewing window, and the ability to choose from over 100 custom colours for the front facia and you have everything you need to stylishly heat your room.

Performance
| Estimated Peak Output | 14kW |
| Average Efficiency | 67% |
| Average Emissions | 0.3 grams per kilogram |
| Emissions per Output | 22 milligrams per megajoule |
Dimensions
| Flue Diameter | Fire Height | Fire Width | Fire Depth |
|---|---|---|---|
| 130mm / 200mm / 250mm | 600mm | 615mm | 465mm |
| Facia Height | Facia Width |
|---|---|
| 736mm | 850mm |
Approvals
NZ MFE/ECAN approval number: 103880Tested and compliant to the following standards:
AS/NZS 4012:1999 Power output and heating efficiency
AS/NZS 4013:1999 Flue gas emissions
AS/NZS 2918:2001 Safety
Downloads
Ethos Woodfires was founded in 2000 to assist reducing the air pollution problems in Christchurch, New Zealand; necessary as it appeared at the time the only option for the local council to reduce air emissions was to ban woodfires completely.

Christchurch experiences subzero winter temperatures, and the opposition to banning woodfires was strong, with fears that many would struggle to endure winter without them.Ethos Woodfire designer Paul Sintes decided he could design and build a cleaner wood fire than was then available, and he did exactly this, releasing the Genesis in 2001.Following the work he did in this region, in 2003 Paul Sintes received the shown Achievement Award from the Clean Air Society of Australia and New Zealand for the significant contribution to the improvement of air quality that Ethos fires made to the Christchurch area over this time.No other fire or designer in Australia and New Zealand has received this honour, it is an award we at Ethos Woodfires are very proud of.
Paul Sintes continues to design our Ethos models today.
Find your nearest Ethos stockist
Ethos dealers are trained specialists who will be able to assist you with all stages of purchase and installation of your Ethos Woodfire.
Zoom / Scroll in on the map to locate your nearest dealer.
Peace of mind, and local support.
Contact us
How can we help?
Please complete your details in the form below, or you are welcome to contact us directly.

Conditional 15 Year Warranty
The warranty applies only to the original purchaser at the original installation location and cannot be transferred.
Firebox
The Ethos Firebox, excluding all moveable parts is provided with a Fifteen Year Warranty from date of purchase against defects caused by faulty materials or manufacture.
Other Parts
All other parts, including: door seals, door glass, baffle, firebricks, air tubes and operating mechanisms are provided with a Twelve Month Warranty from date of purchase where a proven product defect is due to faulty materials or manufacture. Due to the nature of the product many of these parts are susceptible to wear through use and replacement of worn parts come under regular maintenance the product.
Exclusions
This warranty does not cover: Any physical misuse or abuse of the heater, any damage which may be caused by incorrect operation, when sea driftwood and/or domestic rubbish is burned or if the fuel used does not meet the following criteria conditions: contains less than 25% moisture (dry weight), has not been treated with preservatives or impregnated with chemicals or glue, is not chipboard, particle board or laminated board, and is not painted, stained or oiled. Labour, mileage and freight if applicable are excluded from this warranty.
Warranty Conditions
The appliance must be installed in accordance with the manufacturers’ specifications to comply with AS/NZS 2918:2001 and all applicable statutory regulations and local authority requirements.
Installation should be performed by a suitably qualified heating installer.
The appliance must be maintained and operated strictly according to the instructions provided otherwise will be null and void.
Claims for defective or non-complying parts under warranty should be made to and must first be approved in writing by Capisco Limited.
Any required removal of the fire and subsequent reinstallation shall be at the owners’ expense.
The Manufacturer is not liable for any loss or expense, direct or indirect, arising from the failure of any part or operation of the fire. Warranty is limited only to the specific fire.
Work completed by or damage incurred by installers, plumbers, contractors and/or misuse of the product will not be covered by this warranty.
Compliance
All Ethos Woodfires have been tested to comply with the following standards:
AS/NZS 4012:1999 Power output and heating efficiencyAS/NZS 4013:1999 Flue gas emissionsAS/NZS 2918:2001 Safety
CLICK HERE to view our Authorisations on the Ministry for the Environment website.
Owner Manuals
Please click the model below to download the relevant owner manual
Installation Manuals
Lighting Your Ethos Fire
The secret to achieving the best heat and efficiency out of your Ethos Woodfire is to get the fire up to operating temperature as quickly as possible.
Never operate the Ethos Woodfire with the door open – including at start up.Follow these steps to ensure quick and hassle free lighting.
You will need
1x firelighter
About 12x to 15x sticks of dry kindling, approx 25mm diameter
4x or more pieces of medium sized dry firewood, approx 65-70mm diameter
Steps
Ensure the air control on the right hand side is in its fully open position (down).
Position the firelighter in the centre front of the firebox just behind the door.
Place 2x pieces of kindling from front to back alongside the firebricks.
Build the kindling pile alternating crosswise and lengthwise as shown.
Add 4x more pieces of medium sized dry wood across kindling, about level with the top of the firebricks.
Light the firelighter and close the door immediately.
Don't open the door to refuel the fire for approximately 20-30 minutes.
Progressively add larger pieces of fuel to ensure a continued hot fire.
About Firewood
A piece of wood contains two totally different fuels which burn in quite different ways.The first parts to burn are the “volatiles”. These are the resins and creosotes which are converted to flammable gases and smoke by the heat of the fire. Volatiles contain almost all of the pollution content of the wood.The second part of the wood is the ember residue left after the volatiles have been burnt. This is charcoal, and it contains the major part of the heat content of the firewood. Charcoal burns easily and produces little if any pollution emissions.
If your Ethos Woodfire is operating correctly most of the volatiles will burn completely, however if the fire and the ember bed is not kept hot enough they will not burn completely and exit via the flue as unpleasant chimney smoke pollution.Take care to operate your fire so that it does not smoke and you will actually gain more heat from your firewood.
Use the correct fuel and you will maximise the efficiency of your low emission Ethos woodfire
Trouble Shooting
From time to time you may encounter difficulty with the operation of your woodfire.
Here, we list some common woodfire problems and suggest simple ways they can be resolved.
